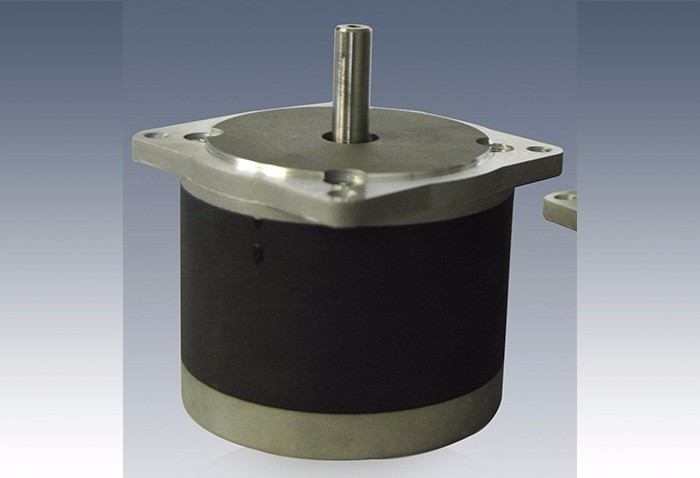

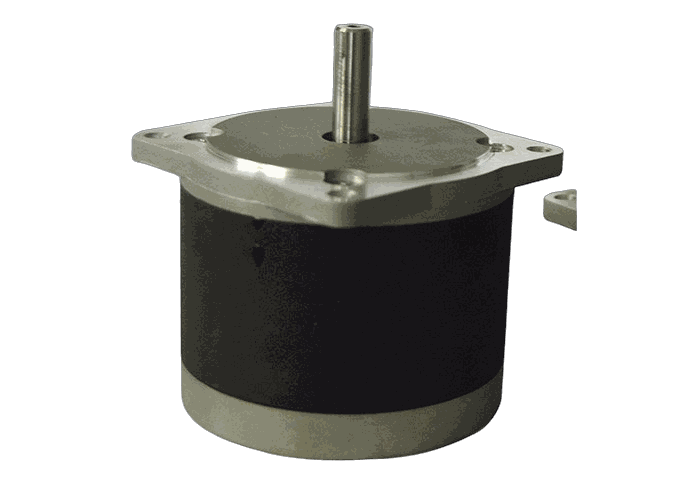

1.8° 86系列二相/四相混合式步进电机的技术参数General Specification
| 项目Item | 规格Specifications |
|---|---|
| 步距角精度Step Angle Accuracy | ± 5% (full step, no load) |
| 电阻精度Resistance Accuracy | ± 10% |
| 电感精度Inductance Accuracy | ± 20% |
| 温升Temperature Rise | 80°C Max. (rated current, 2 phase on) |
| 环境温度Ambient Temperature | - 10°C ~ +50°C |
| 绝缘等级Insulation Class | B |
| 介电强度Dielectric Strength | 500 VAC for one minute |
