| 项目Item | 规格Specifications |
|---|---|
| 步距角精度Step Angle Accuracy | ± 5% (full step, no load) |
| 电阻精度Resistance Accuracy | ± 10% |
| 电感精度Inductance Accuracy | ± 20% |
| 温升Temperature Rise | 80°C Max. (rated current, 2 phase on) |
| 环境温度Ambient Temperature | - 10°C ~ +50°C |
| 绝缘等级Insulation Class | B |
| 介电强度Dielectric Strength | 500 VAC for one minute |

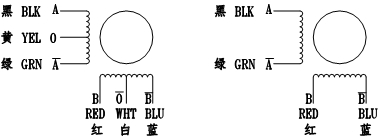

| 型号Model No. | 电压Rated Voltage | 电流Current | 电阻Resistance | 电感Inductance | 最大静力矩Holding Torque | 引出线# of Leads | 转动惯量Rotor Inertia | 重量Weight | 机身长度Length |
|---|---|---|---|---|---|---|---|---|---|
| V | A | Ω | mH | Kg-cm | g-cm2 | Kg | mm | ||
| 42BYGHN1652-L-J | 12 | 0.4 | 30 | 27 | 2.2 | 4 | 38 | 0.2 | 34 |
| 42BYGHN2255-L-J | 12 | 0.4 | 30 | 30 | 2.6 | 6 | 55 | 0.24 | 40 |
| 42BYGHN22103-L-J | 3 | 1.2 | 2.5 | 5.5 | 4.0 | 4 | 55 | 0.24 | 40 |
| 42BYGHN22138-L-J | 2.6 | 2 | 1.3 | 2.2 | 4.3 | 4 | 55 | 0.24 | 40 |
| 42BYGHN3034-L-J | 2.8 | 2 | 1.4 | 3.0 | 5.9 | 4 | 80 | 0.32 | 48 |
| 42BYGHN3087-L-J | 1.76 | 2.8 | 0.63 | 1.4 | 4.8 | 4 | 80 | 0.32 | 48 |
