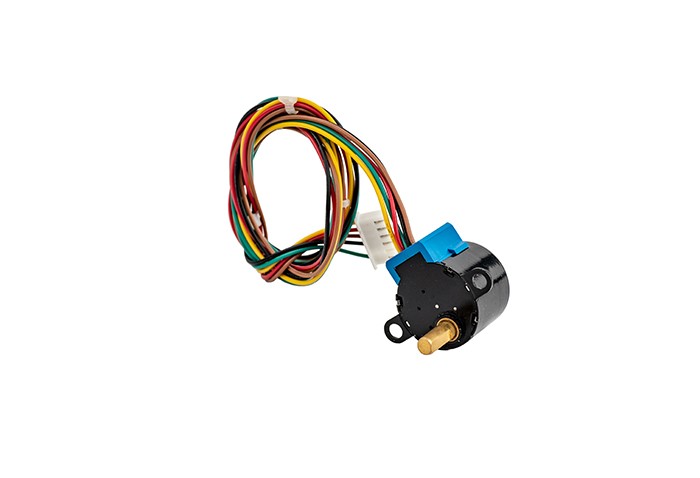

PM 35永磁直流减速步进电机

PM 35永磁直流减速步进电机的技术参数General Specification

项目Item	规格Specifications
步距角精度Step Angle Accuracy	± 10% (full step, no load)
电阻精度Resistance Accuracy	± 10%
电感精度Inductance Accuracy	± 20%
温升Temperature Rise	80°C Max. (rated current, 2 phase on)
环境温度Ambient Temperature	- 10°C ~ +50°C
绝缘等级Insulation Class	B
介电强度Dielectric Strength	500 VAC for one minute

PM 35永磁直流减速步进电机的技术规格 Technique Specifications

型号Model No.	电压Rated Voltage	Mo.of Phase	电阻Resistance	Step Angle	减速比Ratio	起动频率Starting Frequency	运行力矩Pulling Torque（at 100pps）	定位力矩Detent Torque
	V		W	deg		PPS	g-cm	g-cm
35BYS49J04	12	2	38	7.5/4.16	1：4.167	≥350	≥200	≤150
35BYS49J06	12	4	30	7.5/4.16	1：4.167	≥400	≥250	≤150
